New Selenium IDE – Test Suite Options

New Selenium IDE – Test Suite Options

As part of exploring the other Selenium IDE features in-depth, I will explain the below different Test Suite options in Selenium IDE:

  1. Test Suites View
  2. Adding Test Suites
  3. Adding Tests to Test Suite
  4. Renaming Test Suite
  5. Deleting Test Suite
  6. Test Suite Settings
  7. Exporting Test Suite
  8. Executing all the Tests in Test Suite
  9. Adding Multiple Test Suites
  10. Expand and Collapsing Test Suites
  11. Remove the Tests from Test Suite

Let’s get started with a practical demonstration.

New Selenium IDE – Test Suite Options

Follow the below steps for exploring different Test Suite Options in Selenium IDE:

1) Launch the Selenium IDE having multiple recorded Tests as shown below:

Test Suite Options Selenium IDE - multiple tests

2) Now click on the down arrow option and select ‘Test Suites’ option as shown below:

Test Suite Options Selenium IDE - Test Suites

3) Click on ‘+’ option when the ‘Test Suites’ is selected as shown below:

Test Suite Options Selenium IDE - plus

4) Enter any suite name say ‘TestSuiteOne’ into the displayed dialog and click on the ‘Add’ button as shown below:

Test Suite Options Selenium IDE - Suite Name

Observe that the ‘TestSuiteOne’ Test Suite will be added as in Selenium IDE as shown below:

Test Suite Options Selenium IDE - Suite Added

5) Hover the mouse on the newly added Test Suite and select three dots as shown below:

Test Suite Options Selenium IDE - Dots

In the displayed options, select ‘Add Tests’ option as shown below:

Test Suite Options Selenium IDE - Add Tests

Out of the displayed 6 Tests, select only three tests i.e. TestOne, TestTwo, and TestThree and click on ‘Select’ button as shown below:

Test Suite Options Selenium IDE - Select Tests

Click on the down-arrow option of the Test Suite to expand it and observe that the selected Tests got added to the Test Suite as shown below:

Test Suite Options Selenium IDE - Test Added

6) Hover the mouse on the newly added Test Suite, select three dots and select the ‘Rename’ option from the displayed options as shown below:

Test Suite Options Selenium IDE - Rename

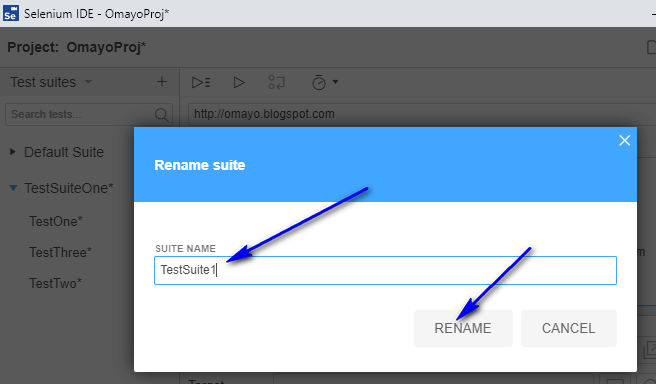

In the displayed ‘Rename suite’ dialog, modify the Suite name to ‘TestSuite1’ and click on ‘Rename’ button as shown below:

Test Suite Options Selenium IDE - Renamed

Observe that the Test Suite got renamed and displayed in the Selenium IDE as shown below:

Test Suite Options Selenium IDE - Renamed and displayed

7) Hover the mouse on any Test Suite say Default Test Suite, select three dots and select the ‘Delete’ option from the displayed options as shown below:

Test Suite Options Selenium IDE - Delete

In the displayed ‘Delete Suite’ dialog, click on ‘Delete’ button as shown below:

Test Suite Options Selenium IDE - Delete Confirm

Observe that the Default Suite got deleted as shown below:

Test Suite Options Selenium IDE - Suite Deleted

8) Hover the mouse on the Test Suite, select three dots and select the ‘Settings’ option from the displayed options as shown below:

Test Suite Options Selenium IDE - Settings

Observe that the ‘Suite Properties’ dialog will be displayed and the different options displayed on the dialog can be modified to be applicable at the suite level and click on ‘Submit’ button as shown below:

Test Suite Options Selenium IDE - Submit Settings

9) Hover the mouse on the Test Suite, select three dots and select the ‘Export’ option from the displayed options as shown below:

Test Suite Options Selenium IDE - Export

In the displayed ‘select languages’ dialog, select any language say ‘Java JUnit’  and click on ‘Export’ button as shown below:

Test Suite Options Selenium IDE - Export Button

Click on the ‘Save’ button in the displayed dialog as shown below to save the complete Test Suite and its Test files:

Test Suite Options Selenium IDE - Save

10) We can run all the tests in the Test Suite by following the below steps:

Select any Test in the required Test Suite and click on ‘Run all tests in-suite’ option as shown below:

Test Suite Options Selenium IDE - Run all tests in suite

Observe that all the Tests in the Test Suite ‘Test Suite1’ got executed one after the other as shown below:

Test Suite Options Selenium IDE - Executed

11) We can create multiple test suites in Selenium IDE by following the below steps:

As we already have one Test Suite ‘TestSuite1’, let’s create another test suite ‘TestSuite2’ by following the similar steps which we have used for creating the ‘TestSuite1’ test suite as shown below:

Test Suite Options Selenium IDE - Second Test Suite

Hover the mouse over ‘TestSuite2’, select three dots and then select ‘Add tests’ option as shown below:

Test Suite Options Selenium IDE - Add Tests Two

In the displayed ‘Select Tests’ dialog, select ‘TestX’, ‘TestY’ and ‘TestZ’ as shown below:

Test Suite Options Selenium IDE - Select Tests Two

Click on the down-arrow option of the Test Suite to expand it and observe that the selected Tests got added to the Test Suite as shown below:

Test Suite Options Selenium IDE - Expand Two

12) Click on the Down arrow again and observe that the Test Suite collapses as shown below:

Test Suite Options Selenium IDE - Collapsed

13) Hover the mouse on any Test inside the Test Suite and select ‘X’ option as shown below:

Test Suite Options Selenium IDE - Remove Test

Observe that the Test under the ‘TestSuite1’ got deleted as shown below:

Test Suite Options Selenium IDE - Test Removed

Here concludes the practical demonstration of all the Test Suite Options in Selenium IDE.

In the next article, I will practically demonstrate another Selenium IDE feature to be explored (Refer other features to be explored here)

Next Steps:

  • > Check complete Selenium Tutorial Contents here (Click here)

Please leave your questions/comments/feedback below.

Happy Learning ?
