Katalon Studio – Configuring Internet Explorer Browser

Katalon Studio – Configuring Internet Explorer Browser

<<Previous Post       <<Complete Tutorial>>       Next Post>>

In the previous article, I have explained the Requirements and Configurations required for executing Test Automation scripts in Katalon Studio.

In this article, I am going to explain configuring the Internet Explorer Browser for executing Test Automation scripts on this browser using Katalon Studio.

Let’s get started.

Katalon Studio – Configuring Internet Explorer Browser

Follow the below steps for configuring Internet Explorer Browser:

1) Open Internet Explorer Browser in your machine and select ‘Tools’ > ‘Internet Options’ as shown below:

Configuring IE Browser - Internet Options

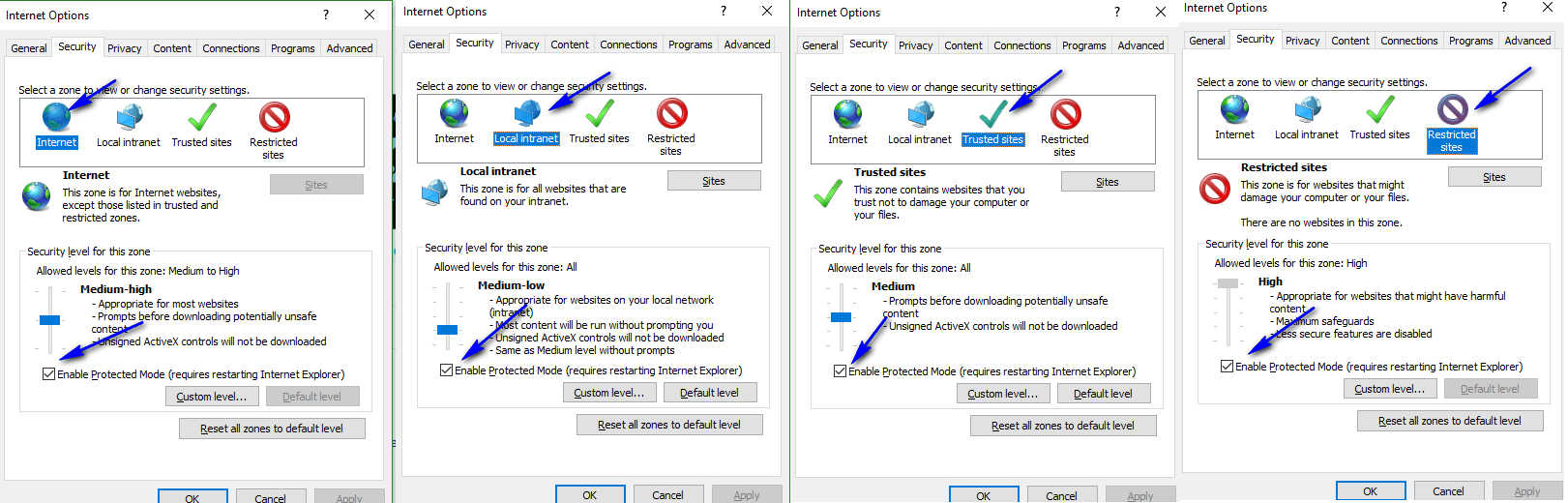

2) In the displayed ‘Internet Options’ dialog, click on ‘Security’ tab and select ‘Enabled Protected Mode’ check box  for ‘Internet’, ‘Local Intranet’, ‘Trusted sites’ and ‘Restricted sites’ as shown below:

Enable Protected Mode

3) In the above ‘Internet Options’ dialog, click on ‘Advanced’ tab and make sure that the ‘Enable Enhanced Protected Mode’ option is not selected as shown below:

Enable Enhanced Protected Mode

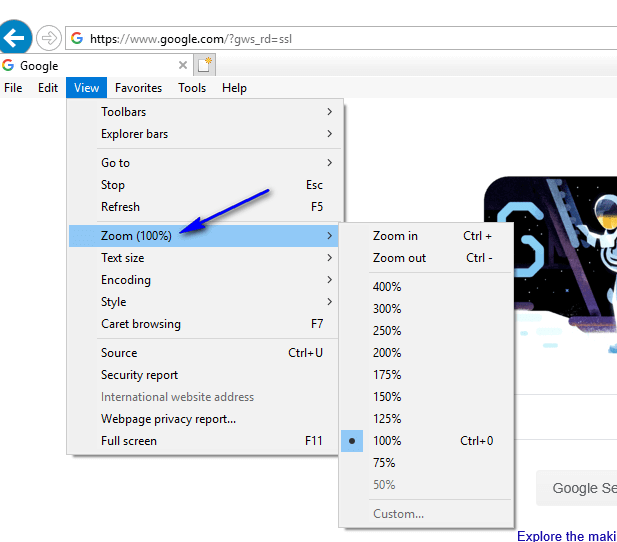

4) Also, verify that the Zoom level of Internet Explorer Browser is set to 100% as shown below:

Configuring IE Browser - 100 percent zoom

5) If your Internet Explorer Browser version is 11, we need to set a registry entry on the target computer, so that the driver can maintain a connection to the instance of Internet Explorer it creates. Follow the below steps:

6)  Type ‘regedit’ into the ‘Command Prompt’ and execute it to open the Registry Editor as shown below:

Configuring IE Browser - cmd regedit

7) Observe that the ‘Registry Editor’ window is displayed as shown below:

Configuring IE Browser - Registry Editor

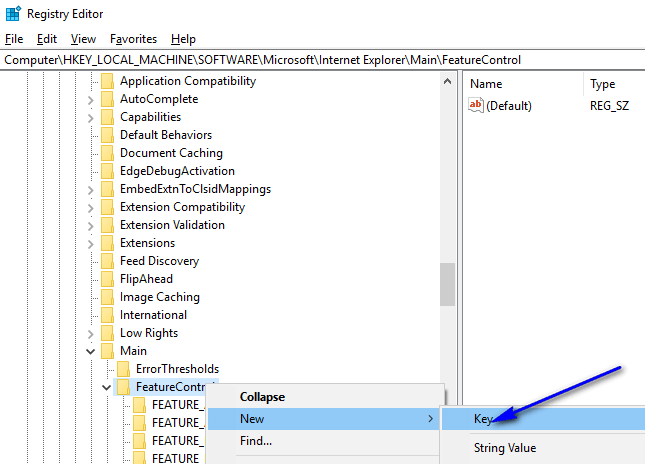

8) Open ‘HKEY_LOCAL_MACHINE’ > ‘Software’ > ‘Microsoft’ > ‘Internet Explorer’ > ‘Main’ > ‘Feature Control’ and right click on select ‘New’ > ‘Key’ as shown below:

Note: Do this only when ‘FEATURE_BFCACHE’ key is not available.

Configuring IE Browser - New Key

9) Give ‘FEATURE_BFCACHE’ name to the above created key as shown below:

Configuring IE Browser - FEATURE_BFCACHE

10) Right click on the above added key, select ‘New’ > ‘QWORD’ as shown below:

Configuring IE Browser - QWORD

11) Give the value as ‘iexplore.exe’ for the above created ‘QWORD’ as shown below:

Configuring IE Browser - iexplore

Here concludes this article.

In the upcoming article, I will practically demonstrate executing a sample test automation script in Katalon Studio.

Next Steps:

  • > To learn more about Katalon Studio, continue to the next post (Click on Next Post Link Below)
  • > Check complete Katalon Studio Tutorial Contents here (Click here)

Please leave your questions/comments/feedback below.

Happy Learning 🙂
